Settlement and Alignment

Settlement and Alignment Survey

Land Construction Company

Backed by the assistance of our highly experienced professional survey team, we provide Tank Settlement and Alignment Survey, Crane Alignment, Vessel Alignment, and Rail alignment Survey services. Our organization is backed by well-equipped machines and technology to execute this service in an excellent way. This service is performed by our adept professionals using superior grade tools and modern techniques. The provided service is highly acclaimed by our precious clients owing to its reliability, promptness, and timely execution. Further, clients can avail of this service at a reasonable price.

Tank Settlement, Crane Alignment, and Rail Alignment

Settlement and Alignment Survey

Value of 3D Laser Scanning

Large storage tanks at oil & gas refineries, airports, mines, farms, and elsewhere need monitoring for deformation, Settlement and Alignment, and other irregularities. Industrial companies today typically face a significant number of hurdles in obtaining the best data early enough to drain tanks when necessary for maintenance and repairs. 3D scanning rapidly allows data capture from a safe distance. The 3D data is compared to perfect cylinders to quickly provide measurable imagery of tanks that are out of tolerance and changes in the surrounding ground.

Tank Settlement, Crane Alignment, and Rail Alignment

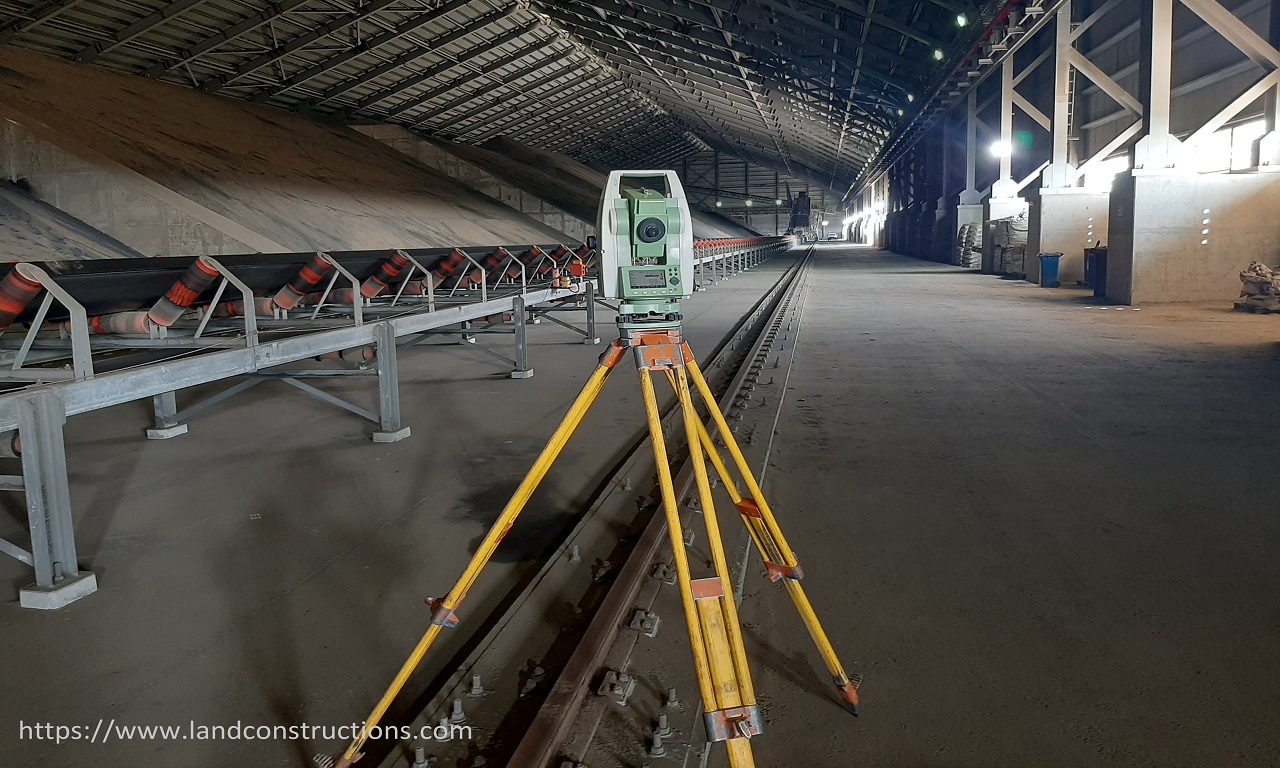

Rail Alignment

Settlement and Alignment Survey

Value of Tank Expertise

Through our specialized expertise in industrial surveying and 3D surveying technologies, we are well equipped to empower tank farm managers to become virtual surveyors from their own desks. Trained surveyors visit tank location and laser surveys repeatable accurate geo-referenced survey data from a safe distance. That data is then delivered to the project manager in whatever format they choose, whether it be AutoCAD, 3D surface meshes, or other customized ways to fit the client’s needs. Our 3D surveys can be accurate to within millimeters. Our surveying data helps increase safety because we can survey from a distance, eliminating the need to place people and equipment in dangerous situations such as tank subsidence or potential tank failure sites.

Settlement Survey of Above Ground Storage Tanks:
⇒ Tank Settlement survey
⇒ Tank Settlement evaluation
⇒ Tank Verticality survey
⇒ Tank Roundness survey
⇒ Vessel Alignment and Settlement

ABOUT THE LAND CONSTRUCTION COMPANY

Land Construction Company | KSA Land Surveyors was founded on the principle of giving our clients a top-quality product. Our full commitment is to excellence within our profession. We assure timely delivery, very competitive prices, and complete client satisfaction.

LCC is a company that is focused on delivering Civil Construction, Earthwork, Road Construction, Land Survey, Topographic, Quantity Survey, ArcGIS Services, GIS Remote Sensing, GIS Mapping, Vessel Alignment, Settlement and Alignment Survey, and Geodetic Control Survey and Benchmark Elevation Services. in the construction environment. LCC is Kingdom Saudi Arabia based company.

Settlement and Alignment Survey

Company Profile

Company Profile

Settlement and Alignment Survey

Rail, Crane and Vessel Alignment Survey

Method for performing Overhead Crane Rail alignment surveys.

The field measurements method for conducting an overhead crane runway system survey uses LCC personnel to accurately place survey sighting targets, e.g., prisms, that are visible to survey personnel on the ground. XYZ data is there collected and a rail alignment profile, a rail elevation profile, a rail span profile, and/or a crane skew profile may be generated.

The data and profiles generated can be reviewed to ascertain whether the overhead rails conform to alignment and settlement specifications. Further, crane skew data may be reviewed to determine whether the crane itself may be misaligned.

Settlement and Alignment Survey

Industrial Alignment Surveys

We tailor our industrial surveys to meet our client’s exact requirements. We understand accuracy and time constraints and employ the best techniques to achieve the desired outcome.

Types of Industrial Alignment Surveys include but are not limited to

⇒ Vessel alignment and settlement surveys
⇒ Conveyor alignment surveys
⇒ Mechanical equipment leveling & alignment survey
⇒ Overhead Crane & Rail alignment surveys

We can carry out the required survey and produce recommendations based on design information. Correct machine alignment is often overlooked in the industry but is crucial to the efficiency of the plant. It is suggested that up to 50% of all rotating machine breakdowns can be attributed to poor alignment, resulting in fatigue and ultimately failure. These equipment failures result in lost time and above all can be extremely dangerous given the high rotating speeds of this equipment. Correct alignment is a fundamental maintenance operation and should be carried out at regular intervals as part of your maintenance regime.

As a civil, earthwork, infrastructure, land survey, topographic survey, gis mapping, Geodetic Control Survey, Tank Settlement, Vessel Alignment, Settlement and Alignment Survey, Benchmark Elevation, and 3d laser scanning, Land Construction Co., adopt a disciplined and consistent approach each and every time we take on projects… regardless of size or scale.

Our conservative approach ensures all projects tendered for are competitively priced with adequate resources assigned to ensure high-quality delivery in a timely manner.

Embedded in our culture of hard work, honesty, and getting the well done job, our history tells not only much about our past but also it does our present.е Our record of succeeding, surviving, and striving to be the best is central to our reputation today.

Development 90%
Design 80%
Marketing 70%

Settlement and Alignment Survey

Equipment, Rail Alignment & Crane Alignment Survey

Regular surveys of crane runway settlement and alignment help to ensure maximum reliability in production, avoid production stoppages and cost-intensive repair work, prevent breakdowns and detect damage to building structures at an early stage of development.

Optimum structure properties can only be ensured by a perfectly aligned crane runway and crane geometry, which give you the certainty of safety all along the line. Land Construction Company uses survey methods that are fast, safe, and reliable.
